Window Bar Information

Free Shipping Continental USA & Canada Wide

No Tax In USA

Before You Buy

Sometimes you don’t know what you’re getting when you buy online. We want you to make the right choice. While we make it convenient for you to buy our window bars online, we also know you may have a lot of questions.

Spending a few minutes reading the following window bar information will give you the comfort of knowing exactly what you’re getting. But if you still have questions, give us a call and we’ll help you make the right choice.

    Window Bar Features

    • Strong 14-gauge steel tubing
    • Durable powder-coated finish
    • Saw-resistant roll bars(most models)
    • Easy, do-it-yourself installation
    • Universal mounting brackets
    • Tamper-resistant mounting hardware
    • Adjustable for a perfect fit every time

    Professional Installers

    All our products are Easy-to-Install, but if you don’t have the time or the tools, contact one of these professional installers.

    In the U.S.

    Our U.S. customers can contact:

    In Canada

    Our Canadian customers can contact:

        &           Lowes

    Do It Yourself

    Our window bars have been designed to be easily installed in minutes by most homeowners. All you need are a few basic tools and you’re on your way.

    Click Here To View Installation Instructions

    Interior Application

    We’ve designed our window bars to be installed on the inside of your home. Interior installation means better security since the glass must be broken before attempting to defeat the bars. In addition, interior installation avoids the problems of exposure to the elements.

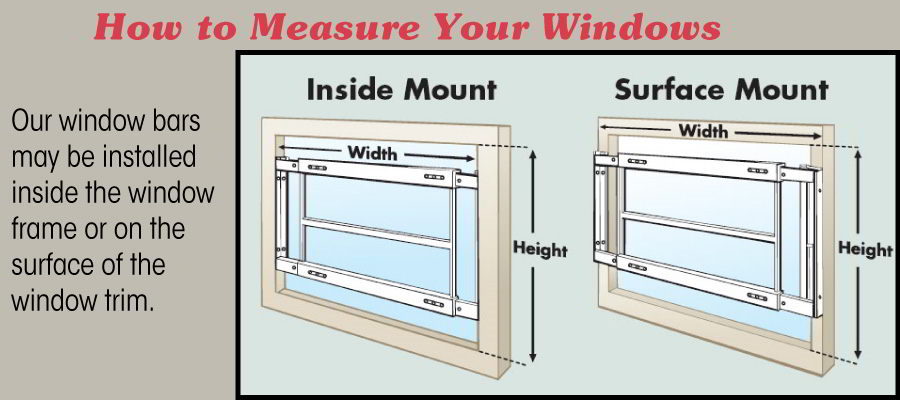

    How To Measure Windows

    Our window bars may be installed inside the window frame or on the surface of the window trim.

    Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

    Mounting Options

    Our window bars may be installed either horizontally or vertically. If you wish to mount the bars vertically, simply substitute height for width, and vice versa, when choosing your size.

    Caution should be used when mounting the swing-away units vertically. Ensure that they are installed with the lock on the bottom to prevent injuries.

    The Keyless Locking System cannot be used when the bars are installed vertically.

    Window Bar Sizes

    Our window bars are available for windows up to 53” high and 74” wide.

    Series A

    Available widths (adjustable):
    Actual height of bars: 6″ (15cm)
    Maximum recommended window height: 14″ (36cm)
    29″ – 42″ (74-107 cm)
    42″ – 54″ (107-137 cm)
    52″ – 64″ (132-162 cm)

    Series B (economy)

    Available widths (adjustable):
    Actual height of bars: 12″ (30 cm)
    Maximum recommended window height: 22″ (56 cm)
    21″ – 28″ (53-71 cm)
    29″ – 42″ (74-107 cm)
    42″ – 54″ (107-137 cm)
    52″ – 64″ (132-162 cm)

    Series C

    Available widths (adjustable):
    Actual height of bars: 12″ (30 cm)
    Maximum recommended window height: 24″ (61 cm)
    21″ – 28″ (53-71 cm)
    29″ – 42″ (74-107 cm)
    42″ – 54″ (107-137 cm)
    52″ – 64″ (132-162 cm)
    62″ – 74″ (158-188 cm)

    Series D

    Available widths (adjustable):
    Actual height of bars: 21″ (53 cm)
    Maximum recommended window height: 33″ (84 cm)
    21″ – 28″ (53-71 cm)
    29″ – 42″ (74-107 cm)
    42″ – 54″ (107-137 cm)
    52″ – 64″ (132-162 cm)
    62″ – 74″ (158-188 cm)

    Series E

    Available widths (adjustable):
    Actual height of bars: 31″ (79 cm)
    Maximum recommended window height: 43″ (109 cm)
    21″ – 28″ (53-71 cm)
    29″ – 42″ (74-107 cm)
    42″ – 54″ (107-137 cm)
    52″ – 64″ (132-162 cm)
    62″ – 74″ (158-188 cm)

    Series F

    Available widths (adjustable):
    Actual height of bars: 41″ (104 cm)
    Maximum recommended window height: 53″ (135 cm)
    21″ – 28″ (53-71 cm)
    29″ – 42″ (74-107 cm)
    42″ – 54″ (107-137 cm)
    52″ – 64″ (132-162 cm)
    62″ – 74″ (158-188 cm)

    Window Bar Models

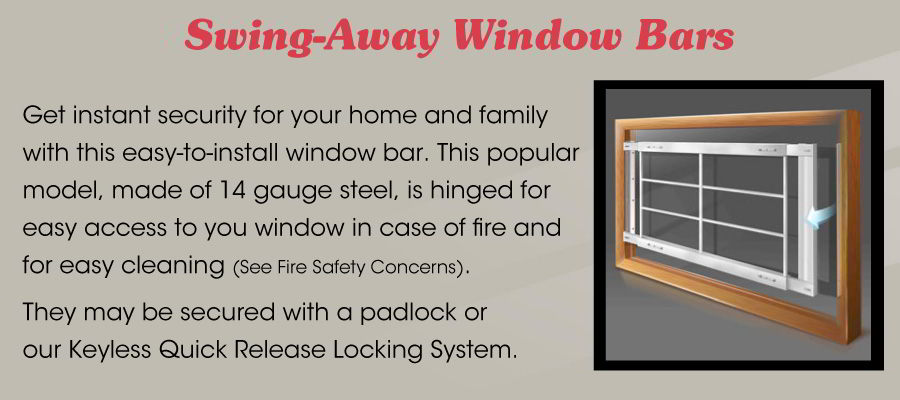

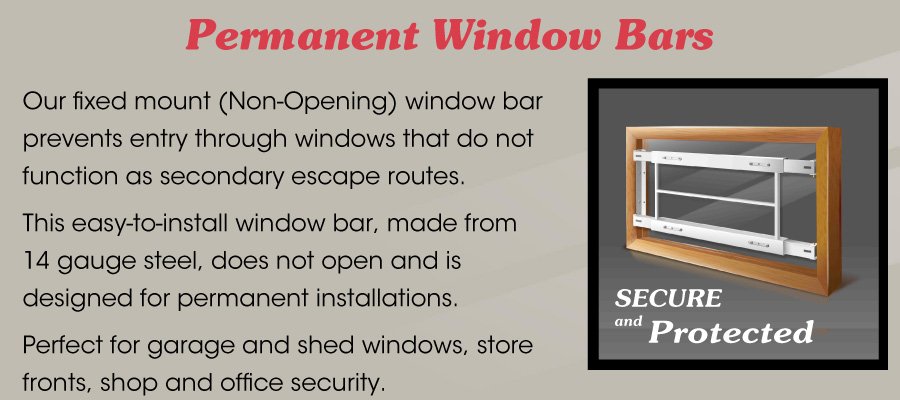

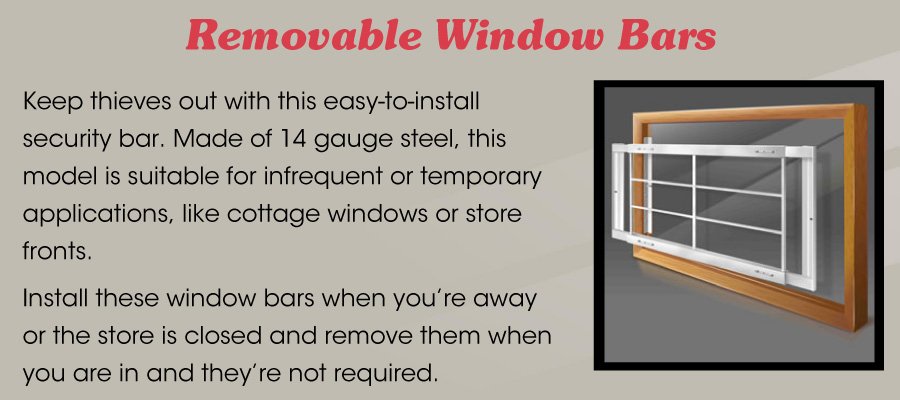

    All window bars are available in 3 different models:

    Large Openings

    If you have windows larger than our standard sizes will fit, we have several options. For extra high windows, you can simply install two or more window bars.. For wider windows, use our to mount 2 bars side by side.

    Colors

    The standard color of our window bars is white, which is preferred by most homeowners. However, we do offer our bars in either black or titanium (silver) for an additional charge.

    Hardware

    All window bars come with the hardware you need to install as well as the right screwdriver bits. We provide wood screws (1 ¾”) with special anti-tampering inserts to prevent them from being unscrewed from the outside.

    Installation

    Please see our installation page for all the information you need for a trouble free installation.

    Fire Exit Concerns

    Model building and life safety codes require window bars (on windows used for secondary means of escape) to be quickly opened from the inside without the use of tools, keys, or special knowledge. These codes include:

    • The Uniform Building Code
    • The National Building Code
    • The Standard Building Code
    • National Fire Protection Association 101 – The Life Safety Code
    • The National Building Code of Canada
    • The International Residential Code

    Typically, secondary escape windows are windows in sleeping rooms and in basements with habitable space. Specific applications, however, may require windows other than these to be used for secondary escape.

    Always consult your local building and fire codes regarding emergency egress from your home.
